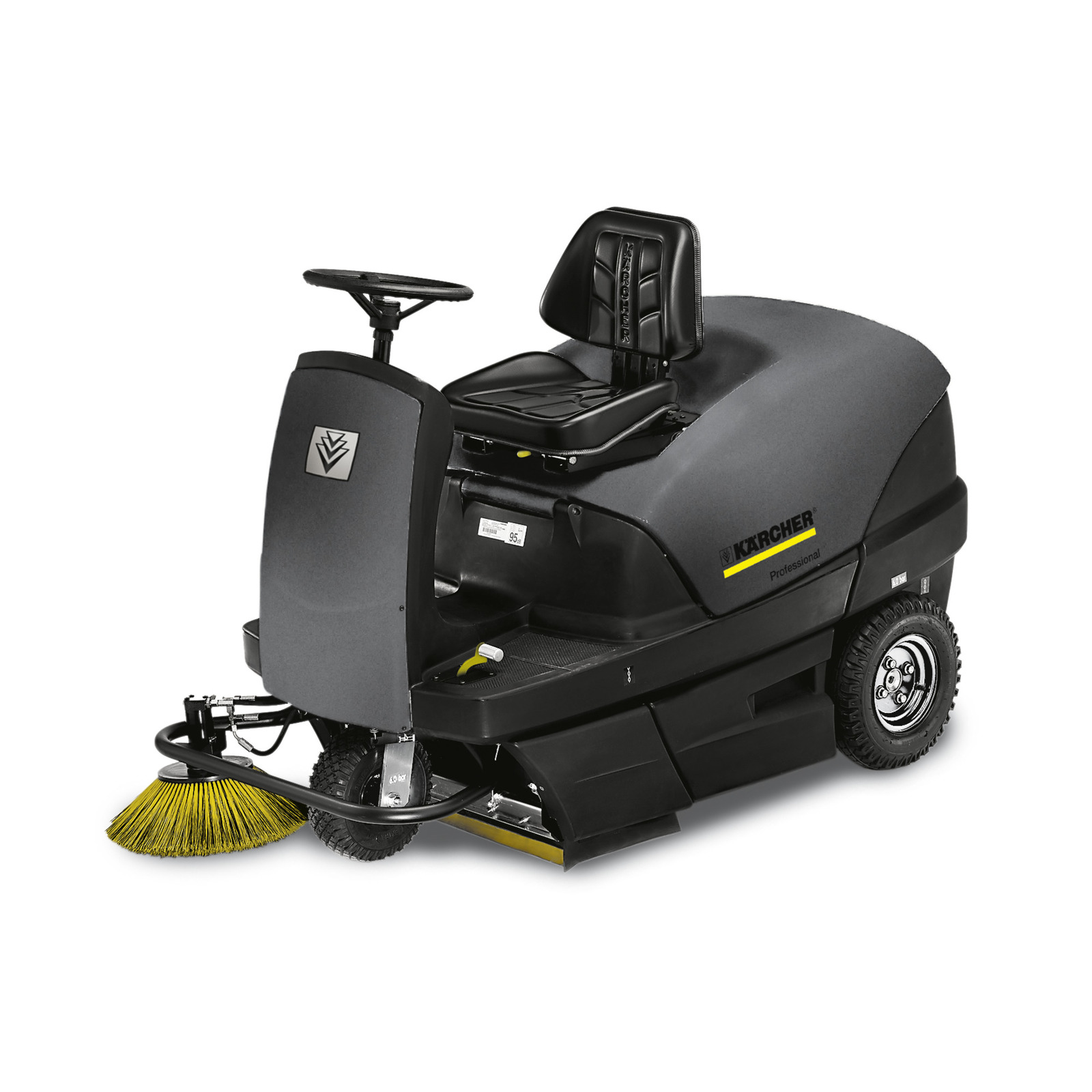

KM100-100 R-G

KM 100/100 R G

This machine uses the overthrow principle, i.e. the roller brush throws the dirt up and back into the dirt container. The floating roller brush adjusts automatically to uneven surfaces. The filter and main roller brush can be replaced without tools. With integrated coarse dirt flap for coarse waste, e.g. cans, split, gravel or wet leaves. The side brush and roller brush are hydraulically driven. A second optional side brush is available. Dirt container:Both 50 litre dirt containers can be removed from the side. Operation: The side brush and main roller brush can be lowered via a switch. Forward and reverse are controlled via a single pedal.


Drive: 4-stroke petrol engine/ Honda

Drive performance (kW): 6,7

Max. area performance with 1/2 side brushes (m²/h): 8000-10400

Working width (mm): 700

Working width with 1/2 side brushes (mm): 1000-1300

Waste container (l): 100

Climbing ability (%): 18

Working speed (km/h): 8

Weight (kg): 340

Dimensions (L x W x H) mm: 2006 x 1005 x 1343
